UNIDENTIFIED
GW2760EX SUPER I/O CARD
Chipset | Unidentified |
Data Bus | 16-bit ISA |
Card Size | Full height, half length |
Hard Drives Supported | Two IDE(AT) devices |
Floppy Drives Supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

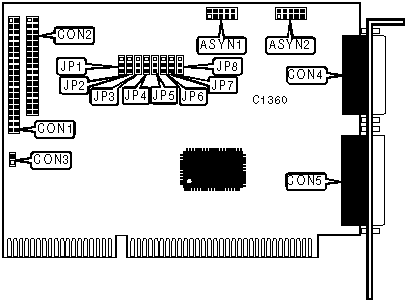

CONNECTIONS | |||
Function | Label | Function | Label |
10-pin serial port 1 - internal | ASYN1 | 2-pin drive active LED | CON3 |
10-pin serial port 2 - internal | ASYN2 | 15-pin game port | CON4 |
40-pin IDE(AT) connector | CON1 | 25-pin parallel port - external | CON5 |
34-pin cable connector - floppy drive | CON2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
» | Game port enabled | JP1 | Pins 1 & 2 closed |
Game port disabled | JP1 | Pins 2 & 3 closed | |
» | Factory configured - do not alter | JP2 | Pins 1 & 2 closed |
» | Floppy interface enabled | JP3 | Pins 1 & 2 closed |
Floppy interface disabled | JP3 | Pins 2 & 3 closed |
SERIAL PORT ADDRESS SELECTION | ||||
Port 1 | Port 2 | JP3 | JP4 | JP5 |
3F8h (COM1:) | 2F8h (COM2:) | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
3F8h (COM1:) | Disabled | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
2F8h (COM2:) | 3F8h (COM1:) | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
2F8h (COM2:) | Disabled | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
Disabled | 3F8h (COM1:) | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
Disabled | 2F8h (COM2:) | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
Disabled | Disabled | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
PARALLEL PORT ADDRESS SELECTION | ||
Setting | JP7 | JP8 |
LPT1: | Pins 1 & 2 closed | Pins 2 & 3 closed |
LPT2: | Pins 1 & 2 closed | Pins 1 & 2 closed |
LPT3: | Pins 2 & 3 closed | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed | Pins 2 & 3 closed |
