ST05X, ST325X Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SEAGATE TECHNOLOGY, INC.
ST05X, ST325X
|
|
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two IDE (XT) Interface drives
Floppy drives supported: None
|

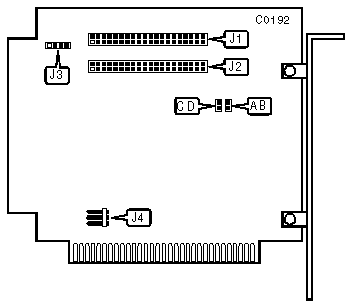

CONNECTIONS | |
|
Function |
Location |
|
40-pin XT interface (IDE) control cable connector-internal |
J1 |
|
40-pin XT interface (IDE) control cable connector-internal |
J2 |
|
4-pin connector-drive active LED |
J3 |
|
5-pin connector-DC power |
J4 |
|
BIOS ADDRESS | ||
|
Address |
Jumper AB |
Jumper CD |
|
C800h |
open |
open |
|
D800h |
open |
closed |
|
D000h |
closed |
open |
|
E000h |
closed |
closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Drive 0 on J1 uses I/O port address 320h-323h; Drive 1 on J2 uses I/O port address 324h-327h |
|
|
|
|
 |
|
