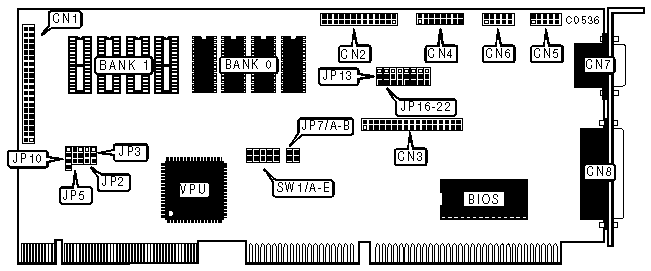

PROLINK COMPUTER, INC.
MVGA-WDC33+
Data bus: | 32-bit VESA |
Size: | Full-length, Full-height card |
Hard drive supported: | Two IDE(AT) interface drives |
Floppy drives supported: | 360KB, 720KB, 1.2MB, 1.44MB |
CONNECTIONS | |
Function | Location |
40-pin IDE(AT) interface connector | CN1 |
VESA feature connector | CN2 |
34-pin control cable connector - floppy drive | CN3 |
15-pin game port - internal | CN4 |
9-pin serial port 1 - internal | CN5 |
9-pin serial port 2 - internal | CN6 |
15-pin analog video port | CN7 |
25-pin parallel port - external | CN8 |
4-pin connector - drive active LED | JP10 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
» | Data/Command line disabled | JP2 | pins 1 & 2 closed |
Data/Command line enabled | JP2 | pins 2 & 3 closed | |
» | CPU type 80486 select | JP3 | pins 2 & 3 closed |
CPU type 80386 select | JP3 | pins 1 & 2 closed | |
» | IDE interface speed 2 select | JP5 | pins 2 & 3, 4 & 5 closed |
IDE interface speed 0 select | JP5 | pins 1 & 2, 4 & 5 closed | |
IDE interface speed 4 select | JP5 | pins 1 & 2, 5 & 6 closed | |
IDE interface speed 5 select | JP5 | pins 2 & 3, 5 & 6 closed |
USER CONFIGURABLE SETTINGS(CONTINUED) | |||
Function | Location | Setting | |
» | Mode 3, 12, 5E, & 5F 72Hz refresh select | JP7/A | closed |
Mode 3, 12, 5E, & 5F 60Hz refresh select | JP7/A | open | |
» | Zero wait state disabled | JP7/B | open |
Zero wait state enabled | JP7/B | closed | |
» | Standard font enabled | SW1/E | open |
TUV font enabled | SW1/E | closed | |
» | Floppy drive interface enabled | JP16 | pins 1 & 2 closed |
Floppy drive interface disabled | JP16 | pins 2 & 3 closed | |
» | Game port enabled | JP18 | pins 1 & 2 closed |
Game port disabled | JP18 | pins 2 & 3 closed |
PRIMARY SERIAL PORT CONFIGURATION | |||
Port (CN5) | JP19 | JP20 | |
» | COM1 | pins 1 & 2 closed | pins 1 & 2 closed |
COM3 | pins 1 & 2 closed | pins 2 & 3 closed | |
Disabled | pins 2 & 3 closed | N/A |
ALTERNATE SERIAL PORT CONFIGURATION | |||
Port 2 (CN6) | JP21 | JP22 | |
» | COM2 | pins 1 & 2 closed | pins 1 & 2 closed |
COM4 | pins 1 & 2 closed | pins 2 & 3 closed | |
Disabled | pins 2 & 3 closed | N/A |
DRAM CONFIGURATION | |||
Size | Bank 0 | Bank 1 | |
» | 1MB | (4)256K x 8 | NONE |
2MB | (4)256K x 8 | (4)256K x 8 |
800 X 600 REFRESH RATES | |||
Refresh | SW1/A | SW1/B | |
» | 56Hz Non-interlaced | open | open |
60Hz Non-interlaced | open | closed | |
72Hz Non-interlaced | closed | open | |
56Hz Non-interlaced | closed | closed |
1024 X 768 REFRESH RATES | |||
Refresh | SW1/C | SW1/D | |
» | 87Hz Interlaced | open | open |
60Hz Non-interlaced | open | closed | |
70Hz Non-interlaced | closed | open | |
72Hz Non-interlaced | closed | closed |
PARALLEL PORT CONFIGURATION | |||
LPT | JP13 | JP17 | |
» | 2 | pins 1 & 2 closed | pins 1 & 2 closed |
3 | pins 1 & 2 closed | pins 2 & 3 closed | |
Disabled | pin s2 & 3 closed | N/A |
