ORCHID TECHNOLOGY
SUPER IDE/VLB CONTROLLER
Data bus: | 32-bit VL-bus |
Size: | Three-quarter length, full-height card |
Hard drive supported: | Two IDE(AT) drives |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

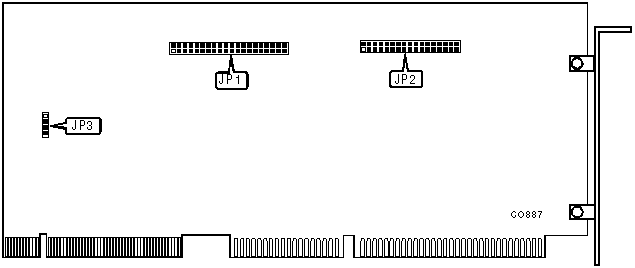

CONNECTIONS | |
Function | Location |
40-pin IDE(AT) connector | JP1 |
34-pin cable connector - floppy drive | JP2 |
4-pin connector - drive active LED | JP3 |
