DTC3292 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DATA TECHNOLOGY CORPORATION
DTC3292
|
Data Bus |
EISA |
|
Card Size |
Full height, three-quarters length |
|
Hard Drives Supported |
Up to 7 SCSI-2 devices |
|
Floppy Drives Supported |
Unidentified |
|

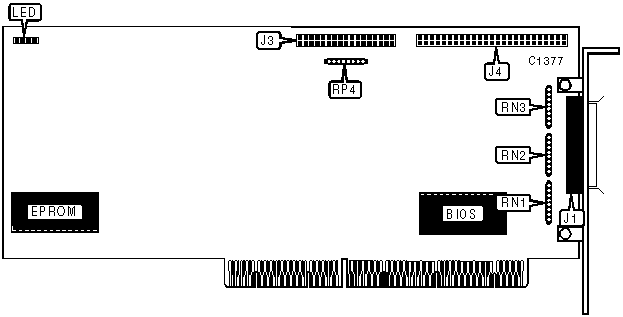

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
50-pin SCSI connector - external |
J1 |
50-pin SCSI connector - internal |
J4 |
|
34-pin cable connector - floppy drive |
J3 |
4-pin drive active LED |
LED |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
RP1 |
Unidentified |
| » |
Factory configured - do not alter |
RP2 |
Unidentified |
| » |
Factory configured - do not alter |
RP3 |
Unidentified |
| » |
Factory configured - do not alter |
RP4 |
Unidentified |
|
SCSI TERMINATION |
|
The method for selecting SCSI termination is unidentified. |
|
|
|
|
 |
|
