BT-956CD Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
BUSLOGIC, INC.
BT-956CD
|
Data bus: |
32-bit PCI |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Up to fifteen SCSI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

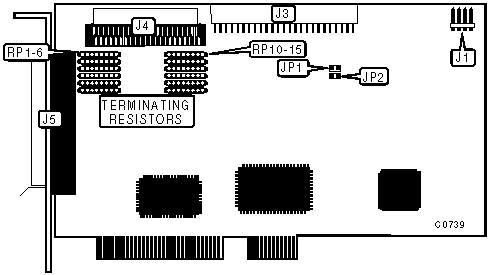

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-drive active LED |
J1 |
|
50-pin connector-SCSI interface (internal) |
J3 |
|
68-pin connector-SCSI interface (internal) |
J4 |
|
68-pin connector-SCSI interface (external) |
J5 |
|
BASE MEMORY ADDRESS SELECTION | |||
|
Address |
JP1 |
JP2 | |
| » |
System BIOS |
open |
open |
|
C800h |
closed |
open | |
|
D800h |
open |
closed | |
|
DC00h |
closed |
closed | |
|
TERMINATION POWER CONFIGURATION | |
|
Setting |
Terminators Installed |
|
Data bits 0-7 terminated |
RP1, RP2, RP3, RP4, RP10, RP11, RP12, RP13 |
|
Data bits 8-15 terminated |
RP5, RP6, RP14, RP15 |
|
All signals terminated |
All installed |
|
|
|
|
 |
|
