S465I Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ALPHA RESEARCH CORPORATION
S465I
|
| |
|
Data bus: |
32-bit, OPTI Local Bus |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Four IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

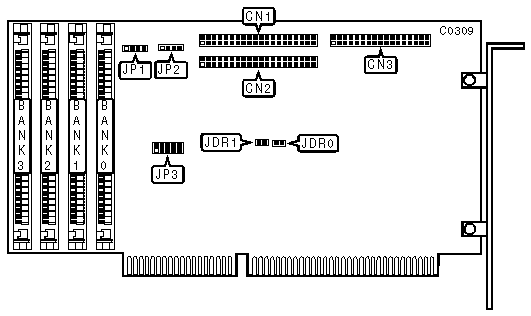

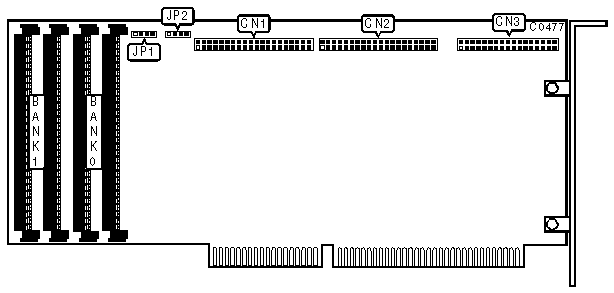

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (AT) Interface connector - IDE-0 |
CN1 |
|
40-pin IDE (AT) Interface connector - IDE-1 |
CN2 |
|
34-pin control cable connector - floppy drive |
CN3 |
|
4-pin connector - drive active LED |
JP1 |
|
4-pin connector - cache error speaker (not implemented) |
JP2 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
A pair of 256KB, 1MB, or 4MB SIMM modules must be installed in Bank 0 for the board to function. |
|
|
|
|
 |
|
