PARADISE ACCELERATOR video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	WD90C31
Highest Resolution Supported	1280 X 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

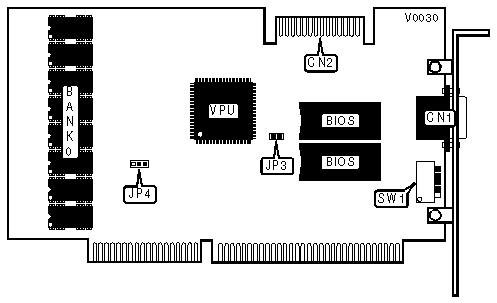

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Feature connector	CN2

ZERO WAIT STATE SELECTION
Setting		JP3
»	Enabled	Closed
	Disabled	Open

ADDRESS LATCH CONFIGURATION
Setting		JP4
»	Address latch line tied to VCC enabled	Pins 1 & 2 closed
	Address latch line to bus enabled	Pins 2 & 3 closed

800 X 600 REFRESH RATE SELECTION
Rate	SW1/1	SW1/2
56.5Hz	Off	Off
72.1Hz	On	Off
60.5Hz	Off	On
56.5Hz	On	On

1024 X 768 REFRESH RATE CONFIGURATION
Rate	Mode	SW1/1	SW1/2
86.7Hz	Interlaced	Off	Off
70.2Hz	Non-Interlaced	On	Off
60.2Hz	Non-Interlaced	Off	On
72.3HZ	Non-Interlaced	On	On

FONT SELECTION
Setting		SW1/5
»	Standard fonts	Off
	TUV fonts	On
Note: TUV is the German standard for character spacing, and may not be compatible with some DOS applications.
