V7 VEGA DELUXE video card Settings and Configuration

VIDEO SEVEN

V7 VEGA DELUXE

Category
Video
Video Types Supported
EGA
Video Processor
Unidentified
Highest Resolution Supported
752 x 410
Data Bus Type
8-bit ISA
Memory Type
Unidentified
Maximum Onboard Memory
256KB

CONNECTIONS
Purpose
Location
Purpose
Location

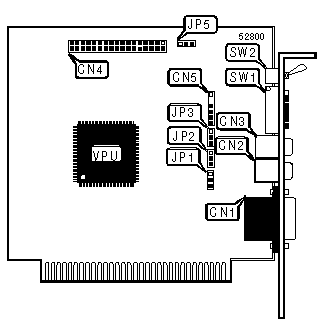

15-pin analog video connector
CN1
VGA feature connector
CN4
RCA Video connector 1
CN2
Light pen connector
CN5
RCA Video connector 2
CN3

PRIMARY ADAPTER SELECT
Monitor
SW1/1
SW1/2
SW1/3
SW1/4
Monochrome Display
Off
Off
On
Off
Color display/EGA (40 x 25)
On
Off
Off
On
Color display/EGA (80 x 25)
Off
Off
Off
On
EGA standard
On
On
On
Off
EGA enhanced
Off
On
On
Off

SECONDARY MONOCHROME DISPLAY SELECT
Secondary Monitor
SW1/1
SW1/2
SW1/3
SW1/4
CGA/EGA (40 x 25)
On
Off
Off
On
CGA/EGA (80 x 25)
Off
Off
Off
On
EGA standard
On
On
On
Off
EGA Enhanced
Off
On
On
Off
Note: This setup is with the VEGA Deluxe board as primary and a MDA adapter as secondary.

VEGA AS SECONDARY DISPLAY SELECT
Monitor Type
SW1/1
SW1/2
SW1/3
SW1/4
CGA/EGA (40 x 25)
On
On
On
On
CGA/EGA (80 x 25)
Off
On
On
On
EGA standard
On
Off
On
On
EGA Enhanced
Off
Off
On
On
Note: This setup is with the MDA adapter as primary monitor and VEGA as secondary.

VEGA/CGA DISPLAY CONFIGURATION
Monitor Type
SW1/1
SW1/2
SW1/3
SW1/4
CGA mode (40 x 25)
On
On
Off
On
CGA mode (80 x 25)
Off
On
Off
On
Note: This setup is with the VEGA adapter as primary monitor and CGA as secondary.

CGA/VEGA DISPLAY CONFIGURATION
Monitor Type
SW1/1
SW1/2
SW1/3
SW1/4
CGA mode (40 x 25)
On
Off
On
Off
CGA mode (80 x 25)
Off
Off
On
Off
Note: This setup is with the CGA adapter as primary monitor and VEGA as secondary.

DELUXE EMULATION CONFIGURATION
Monitor Type
SW1/5
VEGA Deluxe functions enable
On
VEGA Deluxe functions disable
Off

FACTORY CONFIGURED SETTING
Setting
JP1
Do not alter
N/A

SLOT 8 SETTING
Setting
JP2
Enable
Pins 1 & 2 closed
Disable
Pins 2 & 3 closed
Note:Slot 8 on the IBM XT had a different timing than the other 7 slots, this board provides for the option of changing it nature to fit this difference.

ADDRESS RANGE SETTING
Address
JP3
Enable address in the 2XX range
Pins 1 & 2 closed
Enable address in the 2XX/3XX range
Pins 2 & 3 closed

FEATURE CONNECTOR CLOCK SETTING
Setting
JP5
Enable
Pins 2 & 3 closed
Disable
Pins 1 & 2 closed

MONITOR TOGGLE SETTING
Setting
SW2
EGA
To the Right
CGA or Mono
To the Left
