TVGA 8900D video card Settings and Configuration
UNIDENTIFIED
TVGA 8900D
Category | Video |
Video Types Supported | XVGA |
Video Processor | Trident TVGA8900D |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

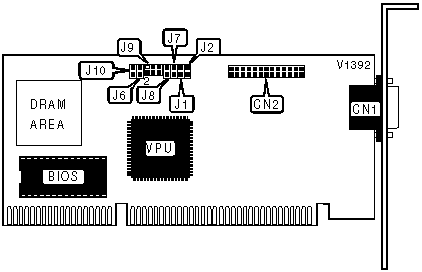

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
FIRST ZERO WAIT STATE CONFIGURATION | ||
Setting | J2 | |
» | Enabled | Closed |
| Disabled | Open |
SECOND ZERO WAIT STATE CONFIGURATION | ||
Setting | J1 | |
» | Enabled | Open |
| Disabled | Closed |
VGA SCAN RATE CONFIGURATION | ||
Rate | J7 | |
» | Normal | Closed |
| 48.7KHz | Open |
BIOS AUTODETECT CONFIGURATION | |
Setting | J8 |
Enabled | Open |
Disabled | Closed |
ISA BUS SLOT SELECTION | |||
Bus | J6 | J9 | J10 |
16-bit | Open | Open | Closed |
8-bit | Closed | Pins 1 & 2, 3 & 4, 5 & 6 closed | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
512KB | 512KB | NONE |
1MB | 512KB | 512KB |
Note: Exact configuration of DRAM memory is unidentified. | ||
