UNIDENTIFIED
NT-200B
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |

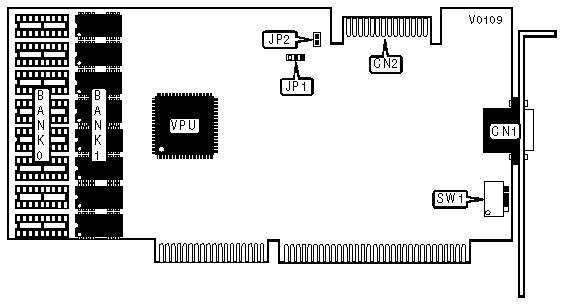

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
FACTORY CONFIGURED - DO NOT ALTER | |
Switch | Setting |
SW1/3 | Off |
GRAPHICS MODE CONFIGURATION | ||
Setting | JP1 | |
» | Extended graphics mode enabled | Pins 1 & 2 closed |
Extended graphics mode disabled | Pins 2 & 3 closed |
MANUAL 16-BIT BIOS CONFIGURATION | ||
Setting | JP2 | |
» | Initial setup and normal operation | Closed |
Note: JP2 should remain in the closed position unless the 16TEST program has been run and it recommendsremoving the jumper. |
TIMING SELECTION | ||
Timing | SW1/1 | |
» | Standard VGA timing | Off |
Special timing for multi-frequency monitors | On |
VGA MODE SELECTION | ||
Mode | SW1/2 | |
» | PS/2 style | On |
PC/AT style | Off |
BUS WIDTH AUTODETECT CONFIGURATION | ||
Setting | SW1/4 | |
» | Enabled | On |
Disabled | Off |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
256KB | (8) 41256 | None |
512KB | (8) 41256 | (8) 41256 |
