VC400 video card Settings and Configuration






REVEAL COMPUTER PRODUCTS

VC400

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

1MB VRAM

Video Types Supported

VGA

Highest Resolution Supported

1024 x 768

Data Bus

16-bit ISA

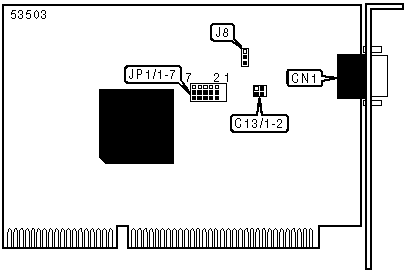

CONNECTIONS

Function

Label

9-pin digital video port

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

IRQ 5 enabled

C13/1

Closed



IRQ 2 enabled (not used)

C13/2

Closed

»

Mouse port disabled

J8

Pins 1 & 2 closed



Mouse port enabled

J8

Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CONTINUED)

Function

JP1/2

JP1/3

JP1/4

JP1/5

JP1/6

JP1/7

Unidentified

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Note: Designated pins are closed. JP1/1 has no configurable settings.
