AUTOSWITCH EGA 350 video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	720 x 348
Maximum Video Memory	256KB RAM (Type unidentified)
Data Bus	8-bit ISA
Video Types Supported	EGA/CGA/MDA

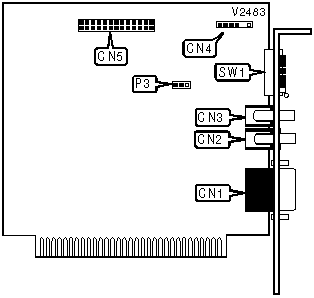

CONNECTIONS
Function	Label	Function	Label
9-pin digital video port	CN1	Light pen connector	CN4
RCA connector	CN2	Feature connector	CN5
RCA connector	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	P3	Pins 1 & 2 closed

DISPLAY SELECTION (PRIMARY AS MONOCHROME)
Setting	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
40 column	On	Off	Off	On	Off	Off
80 column	Off	Off	Off	On	Off	Off
200 column	On	On	On	Off	Off	Off
350 column	Off	On	On	Off	Off	Off

DISPLAY SELECTION (SECONDARY AS MONOCHROME)
Setting	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
40 column	On	On	On	On	Off	Off
80 column	Off	On	On	On	Off	Off
200 column	On	Off	On	On	Off	Off
350 column	Off	Off	On	On	Off	Off

DISPLAY SELECTION (PRIMARY AS COLOR)
Setting	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
40 column	On	Off	On	Off	Off	Off
80 column	Off	Off	On	Off	Off	Off

DISPLAY SELECTION (SECONDARY AS COLOR)
Setting	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
40 column	On	On	Off	On	Off	Off
80 column	Off	On	Off	On	Off	Off
