ALARIS, INC.
QUICKVIDEO
Card Type | Video capture/tuner (optional) card |
Video Chip Set | Unidentified |
Highest Resolution Supported | 320 x 240 (window size) |
Maximum Video Memory | None |
Data Bus | 16-bit ISA |
Capture Formats Supported | YUV 4:2:2(16-bit/pixel), YUV 4:2:2(adjustable compression), RGB (16-bit/pixel), RGB (24-bit/pixel) |

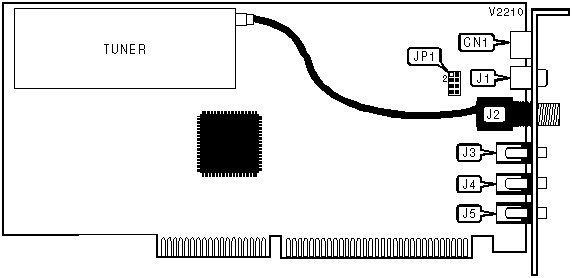

CONNECTIONS | |||
Function | Label | Function | Label |
S-video | CN1 | Line 1 (microphone) in | J3 |
Composite video | J1 | Line 2 in | J4 |
RF connector | J2 | Speaker out | J5 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Line 1 audio input select | JP1/pins 1 & 2, 7 & 8 | Closed |
Line 1 microphone input select | JP1/pins 2 & 3, 6 & 7 | Closed | |
Factory configured - do not alter | JP1/pins 4 & 5 | Open |
